IT Incident Log Analysis Pipeline

Analysis of IT incident logs generated by the ServiceNow™ platform used by an IT company. This project includes data extraction, transformation, and visualization using Azure Data Factory and Azure Databricks.

---

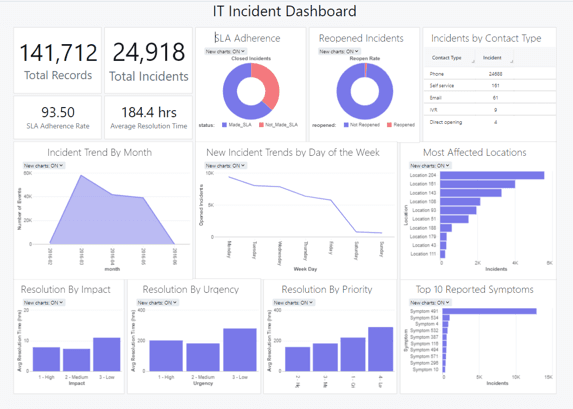

Dashboard

Tools Used

• Orchestraction:
  • Azure Data Factory
• Azure Data Bricks
• Pyspark
• Spark SQL
• Azure CosmosDB
• Azure Storage Gen2
• Azure SQL

---

Steps

1. Data Extraction from multiple sources.
2. Loading Data into an Azure Cosmos Database.
3. Data Cleaning and Transformations using PySpark in Azure Databricks.
4. Data Analysis using Spark SQL and Databricks.

---

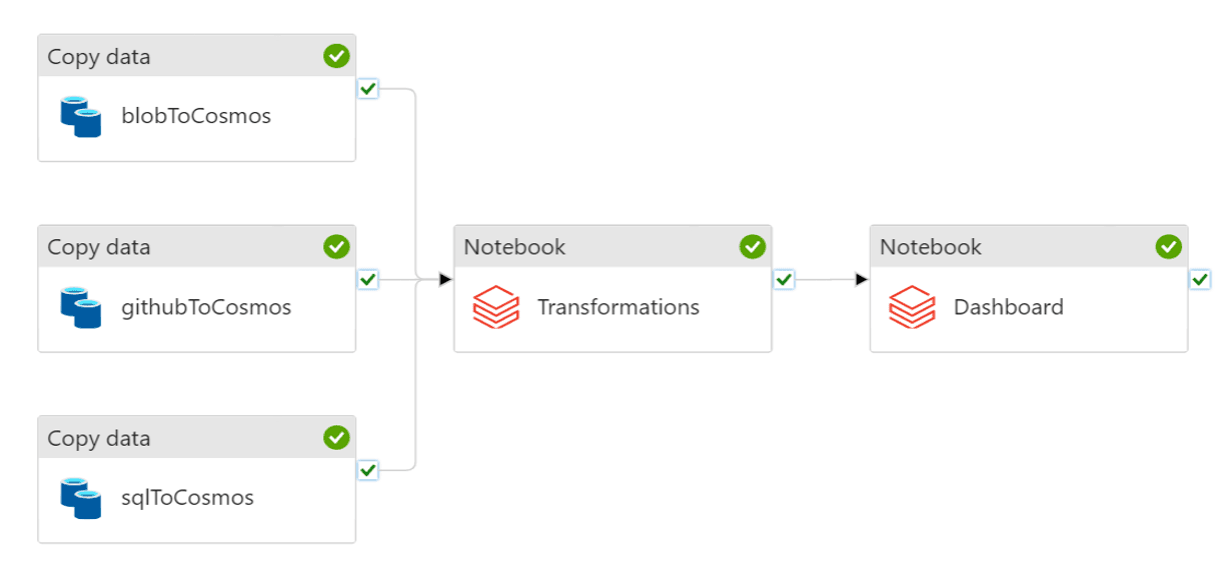

ADF Pipeline

Extraction Layer

Sources:

• Blob files in Azure Storage Gen2
• HTTP source from GitHub
• Relational data from Azure SQL Database

Transformation Layer

Transformations performed using Azure Databricks with PySpark:

• Data Cleaning and Reformatting:
  • Removed columns with more than 30% null values (invalid for analysis).
  • Removed duplicate rows.
  • Reformatted datetime data into an appropriate format.
  • Renamed columns for better understanding.
  • Extracted month and year information from datetime fields.

Visualization Layer

• Visualizations performed using Azure SQL in Databricks.
• Analyses focused on SLA adherence and MTTR.
